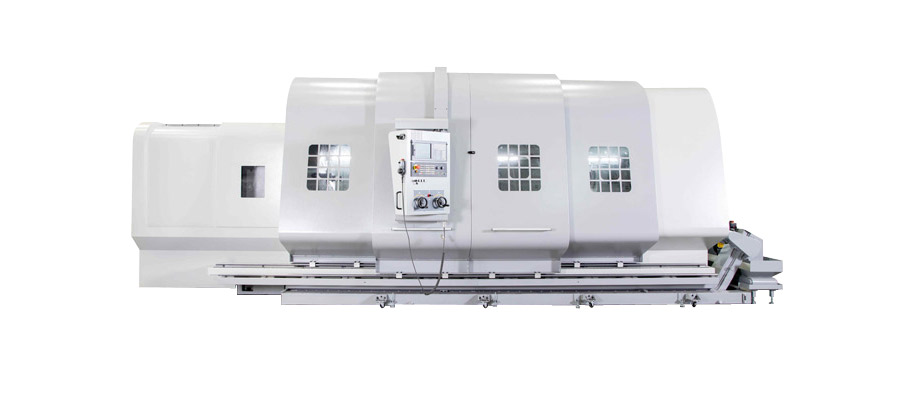

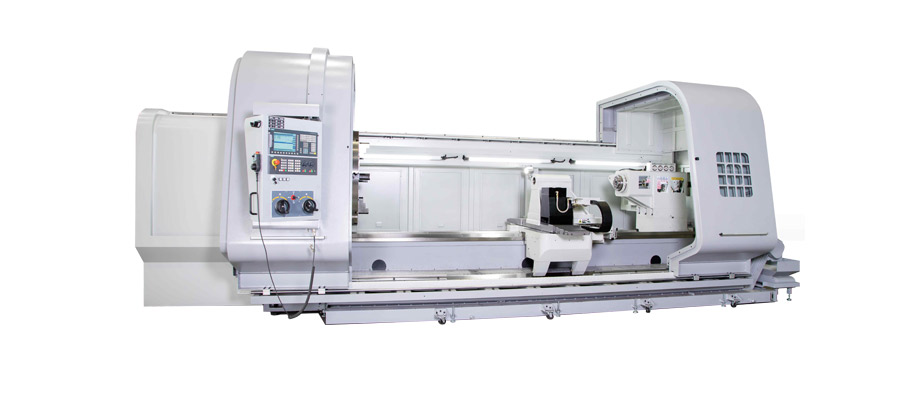

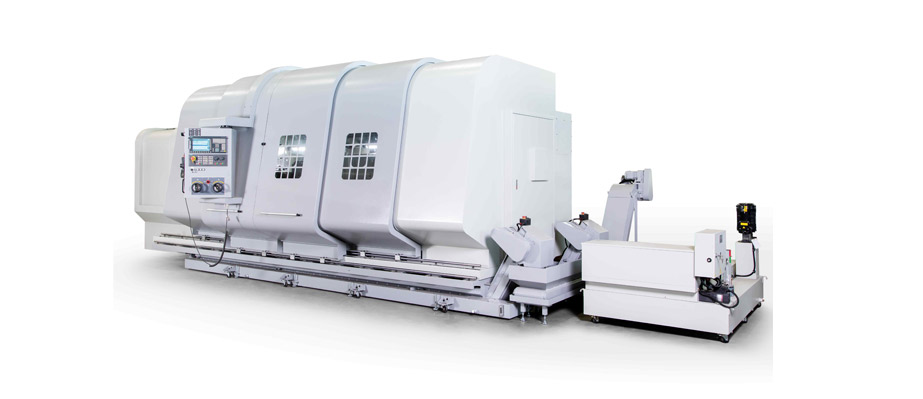

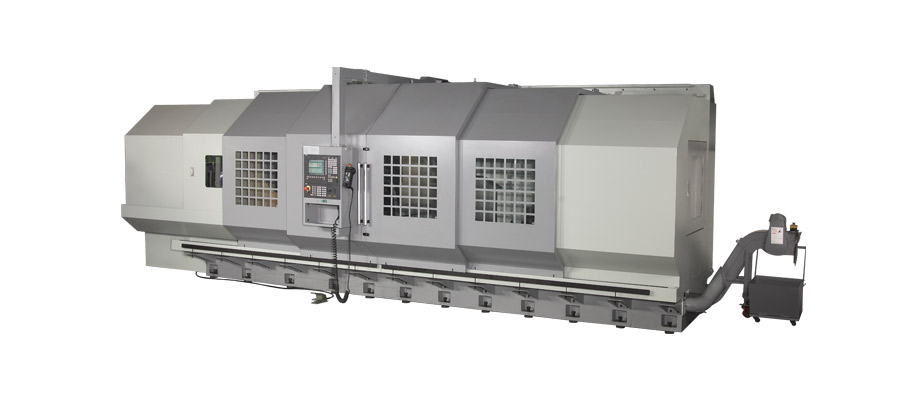

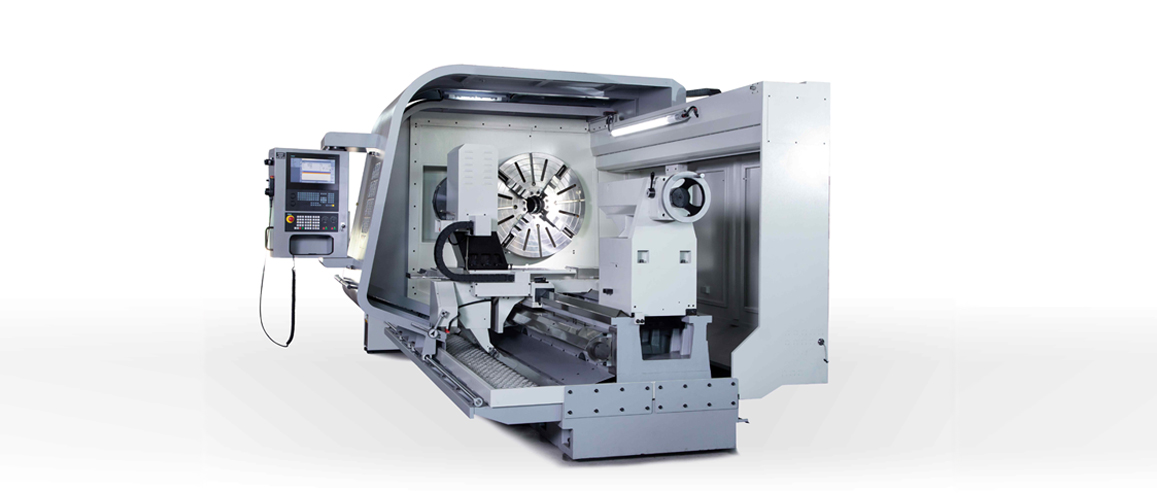

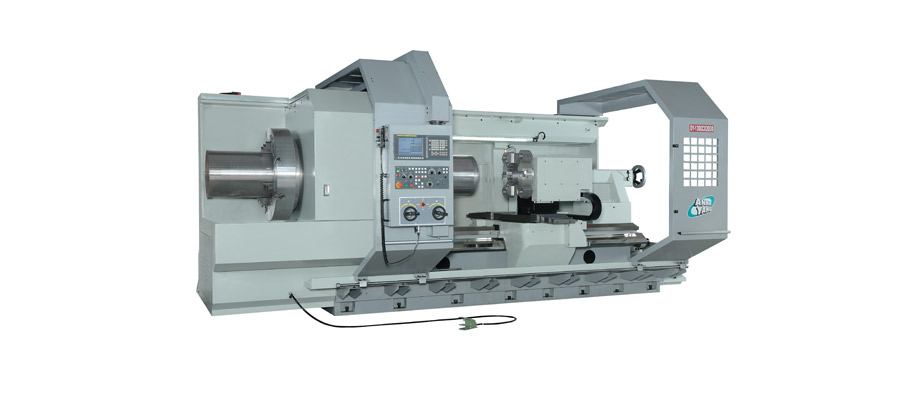

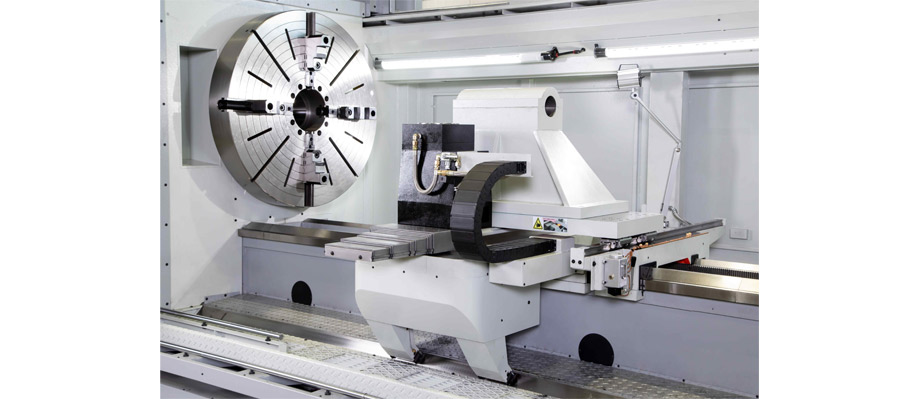

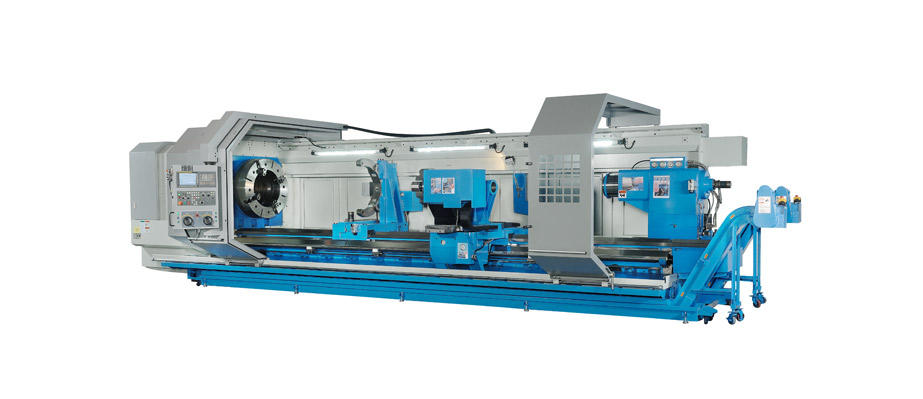

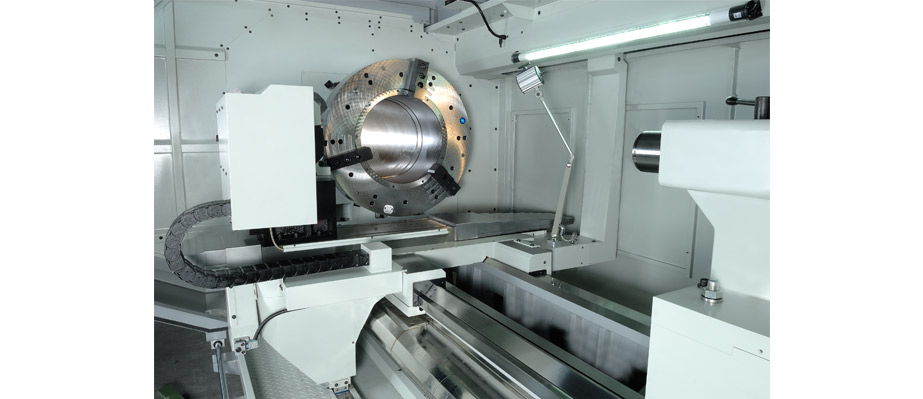

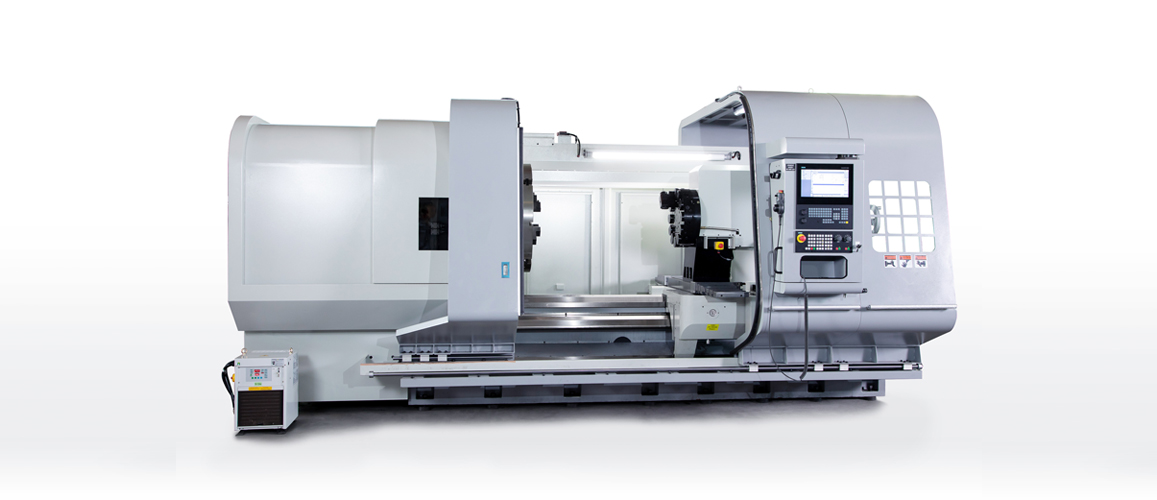

| MODEL |
DY-1200C |
DY-1300C |
DY-1400C |
DY-1500C |
| Machining Capability |
Distance Between Centers |
1500 / 2000 / 3000 / 4000 / 5000 / 6000 / 7000 / 8000 / 9000 / 10000 / 11000 / 12000 / 13000 / 14000 / 15000 / 16000 / 17000 / 18000 / 19000 / 20000 / 21000 / 22000 / 23000 / 24000 / 25000 |
| Swing Over Bed |
1200 mm |
1300 mm |
1400 mm |
1500 mm |
| Swing Over Cross Slide |
820 mm |
920 mm |
1020 mm |
1120 mm |
| BED |
Width |
692 mm |

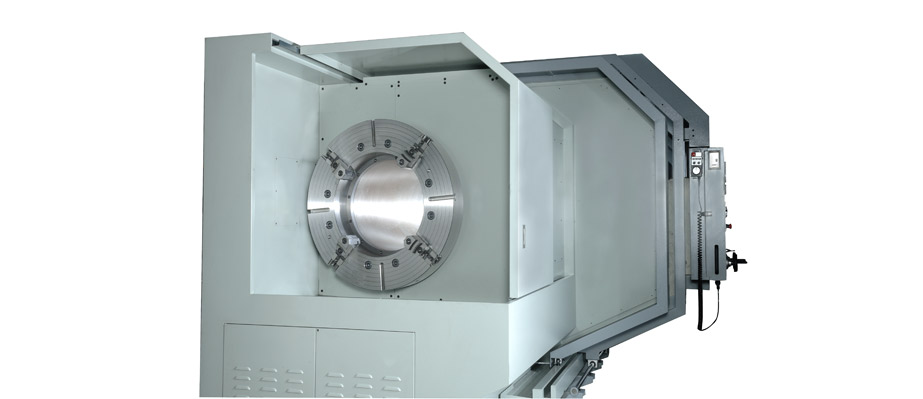

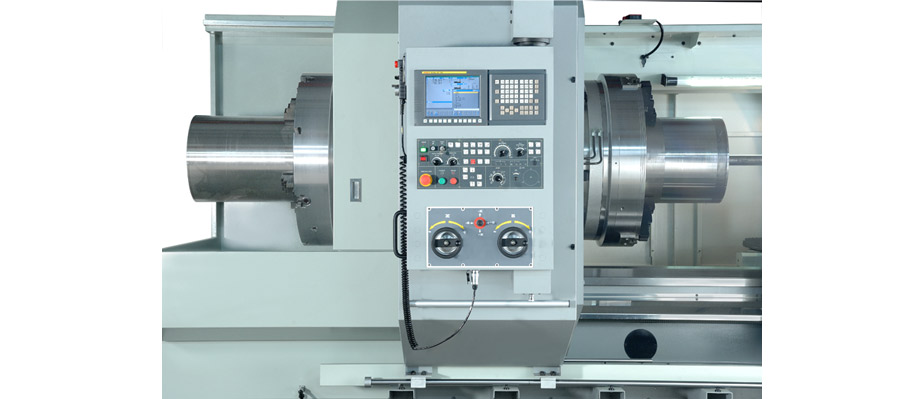

| Main Spindle |
Spindle Nose |
A2-11, 165 mm, L: 20-110, M: 110-320, H: 320-660
A2-15, 230 mm, L: 20-110, M: 110-320, H: 320-660
A2-20, 310 mm, L: 20- 100, M: 100- 200, H: 200- 400
A2-20, 360 mm, L: 20- 100, M: 100- 200, H: 200- 300
A2-28, 410 mm, L: 20- 100, M: 100- 200, H: 200- 250 |
| Spindle Bore |
| Spindle Speed (rpm) |
| Travel |
Cross Travel (X Axis) |
600 mm |
650 mm |
700 mm |
750 mm |
| Standard tool post 300 x 300mm, larger tool post might cause travel reduced. |
| Longitudinal Travel (Z Axis) |
DBC-650 |
| Feeds |
X Axis Rapid Traverse |
5 M/min |
| Z Axis Rapid Traverse |
5 M/min |
| Cutting Feed Rate |
0.001 - 500 mm/rev (0.0004" - 20"/rev) |
| Motors |
Main Motor |
50 hp |
| Inverter |
50 hp |
| X Axis Servo Motor |
Siemens or Fanuc or Fagor AC servo motor
FXM 55 / 3.62 kw / 17.3 Nm / 2000 rpm |
| Z Axis Servo Motor |
Siemens or Fanuc or Fagor AC servo motor
FXM 78 / 10.7 kw / 51.1 Nm / 2000 rpm |
| Oil Pump |
100 W |
| Coolant Pump |
450 W, 6 ~ 10 bar |
| Hydraulic Tank Pump (Optional) |
3 hp (2.2 kw) |
| Tank Capacity |
Hydraulic Tank (Optional) |
20 L |
| Lubrication Pump |
8 L |
| Ball Screw |
X Axis Diameter |
40 mm / pitch 5mm |
| Z Axis Diameter |
80 mm / pitch 10 mm |
| Tailstock |
Quill Diameter |
140 / 200 mm (OPT.) |
| Quill Travel |
350 mm |
| Quill Taper |
MT6 |
| Length (mm) |
4930 / 5430 / 6430 / 7430 / 8430 / 9430 / 10430 / 11430 / 12430 / 13430 / 14430 / 15430 / 16430 / 17430 / 17430 / 18430 / 19430 / 20430 / 21430 / 22430 / 23430 / 24430 / 25430 / 26430 / 27430 / 28430 |
| Width (mm) |
2730 |
| Height (mm) |
2430 |
| N.W (kg) |
10500/11000/12000/13000/14000/15000/16000/17000/18000/19000/20000/21000/22000/23000/24000/25000/26000/27000/28000/9000/30000/31000/32000/33000/34000 |
| * Las especificaciones anteriores están sujetas a cambios sin previo aviso. Requisito especial por favor conéctese con nosotros. |
