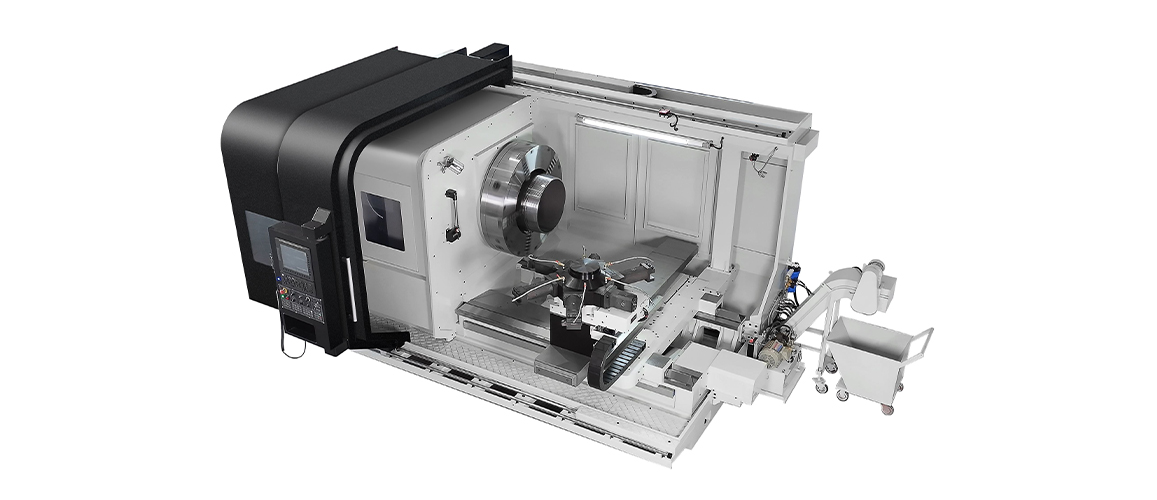

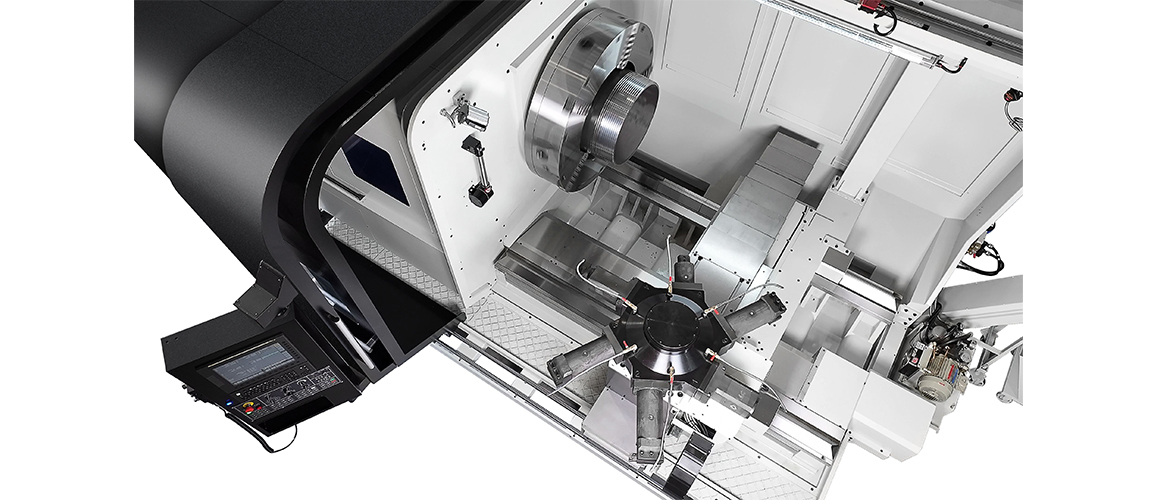

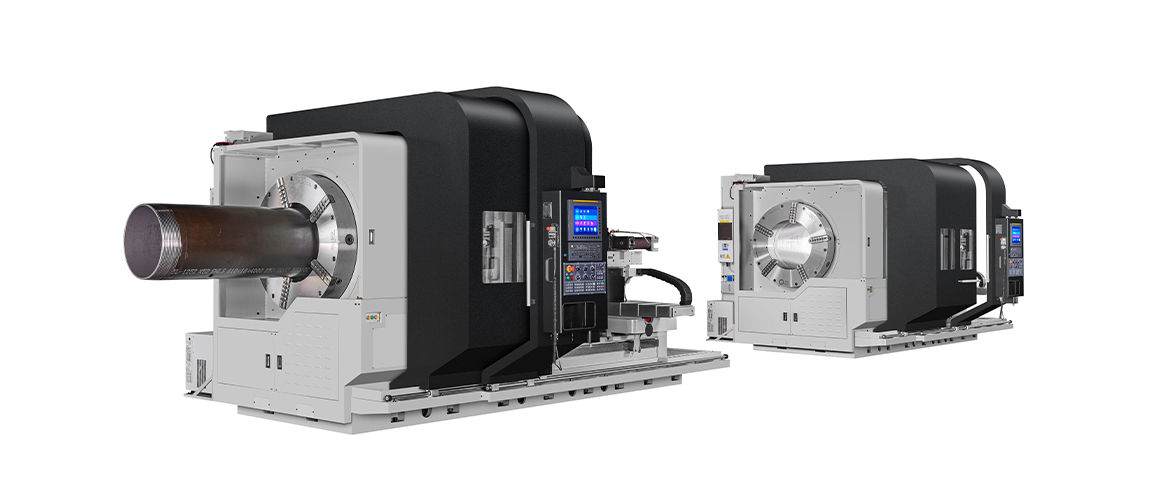

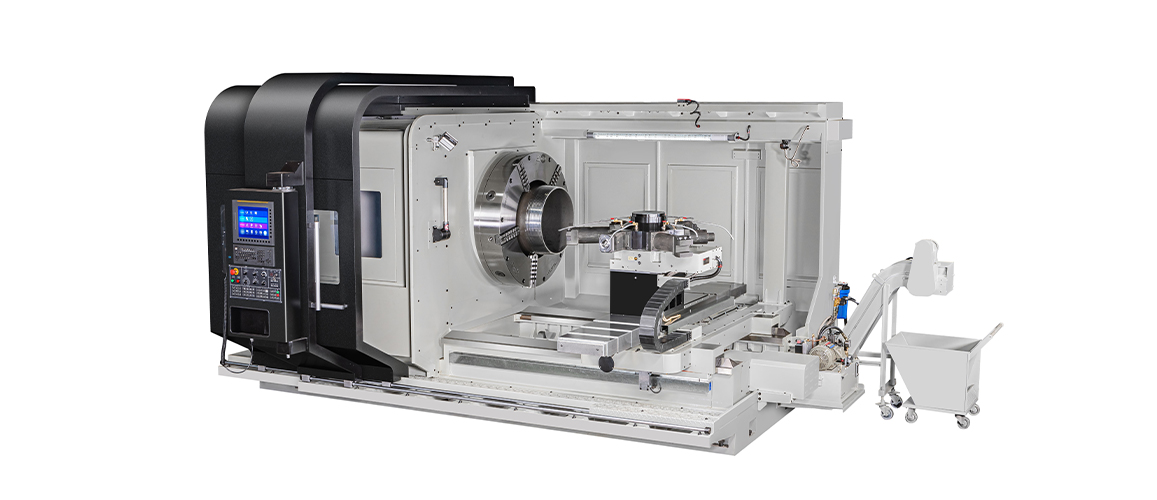

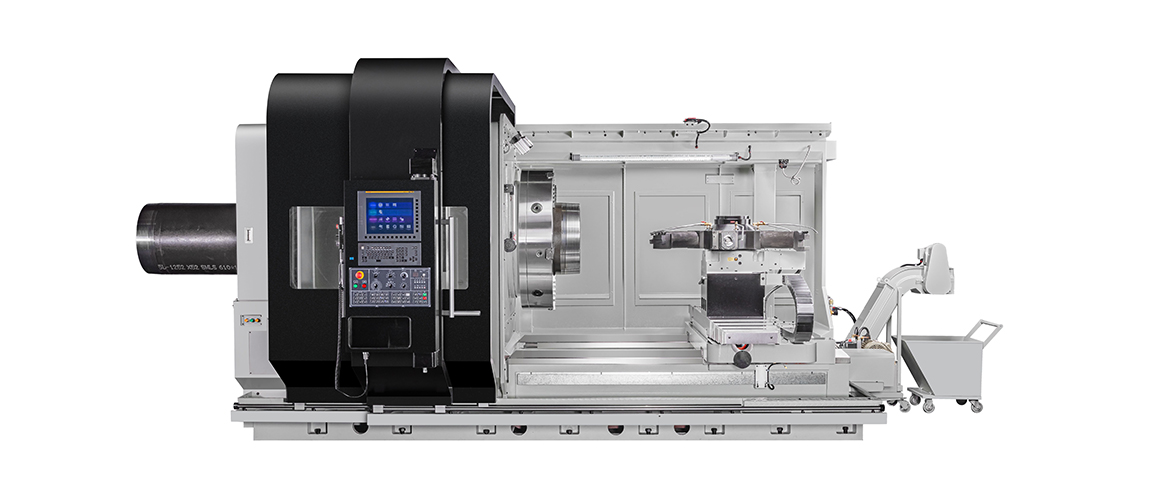

CNC Facing Lathe Large Swing Lathe for Big Flange Turning AF-1600~2000 (BED 1400MM) MENU Specification Photos Inquiry
ITEM MODEL AF-1600 AF-1800 AF-2000 Machining capability Swing over bed 1600mm 1800mm 2000mm Swing over cross slide 900mm 1100mm 1300mm BED Width 1400mm Main Spindle Spindle nose A2-15 Spindle bore 230mm Spindle speed (rpm) L:10~50, M: 50~150, H: 150~400rpm Travel Cross travel (X axis) 900mm 920mm 1020mm Longitudinal travel (Z axis) 1500mm Feeds X axis rapid traverse 5M/min Z axis rapid traverse 5M/min Cutting feed rate 0.001-500mm/rev (0.0004"-20"/rev) Motors Main motor spindle motor 1PH8165-1DF00, 37kw Inverter -------- X axis servo motor 1FK7101, 4.3kw, 27Nm Z axis servo motor 1FT7105, 11.7kw, 65Nm Oil pump 30W / 8L Coolant pump 750W, 6~10bar Hydraulic tank pump (optional) 3hp (2.2kw) Tank Capacity Hydraulic tank (optional) 20L Lubrication pump 8L Ball Screw X axis diameter 50mm / Pitch 10 Z axis diameter 80mm / Pitch 10 Tailstock Quill diameter --- Quill travel --- Quill taper --- Length (mm) 4950mm (with chip conveyor: 6610mm) Width (mm) 3100mm Height (mm) 2750mm N.W (kg) 14600kgs
