DY-1000C~1100C (BED 1040MM)

  • Specification

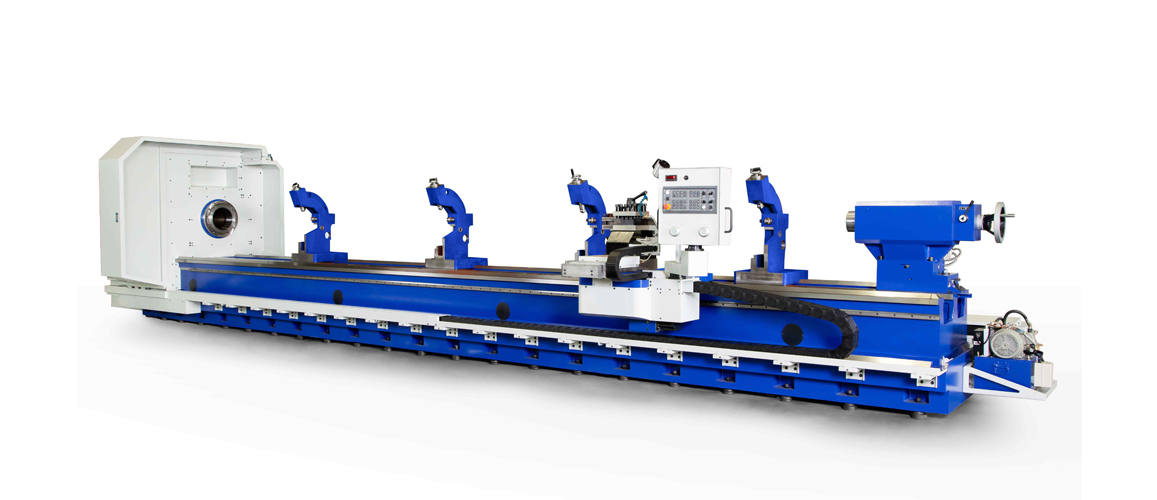

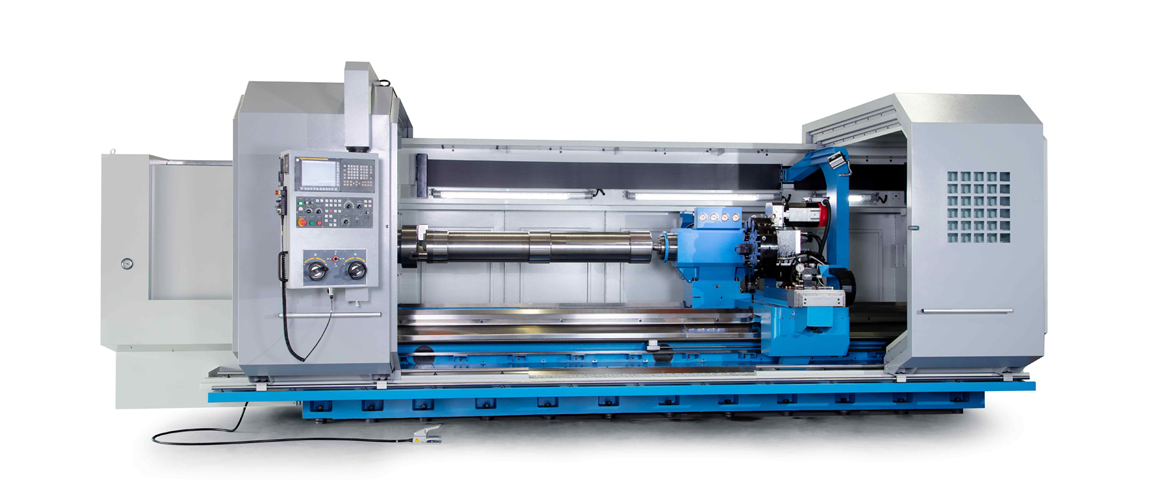

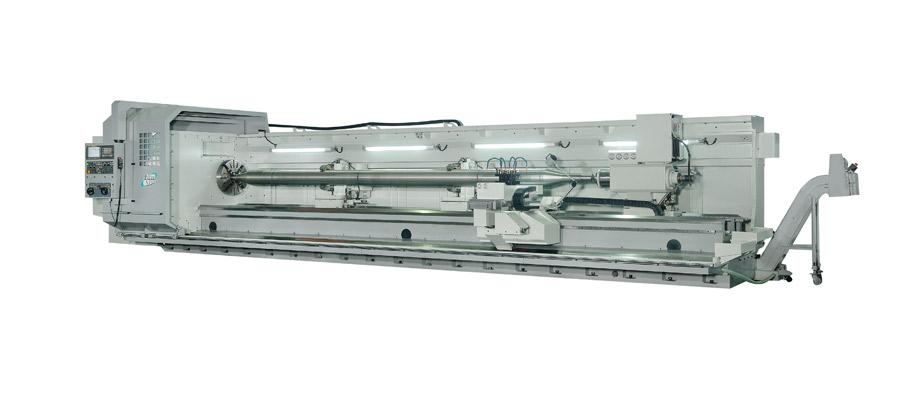

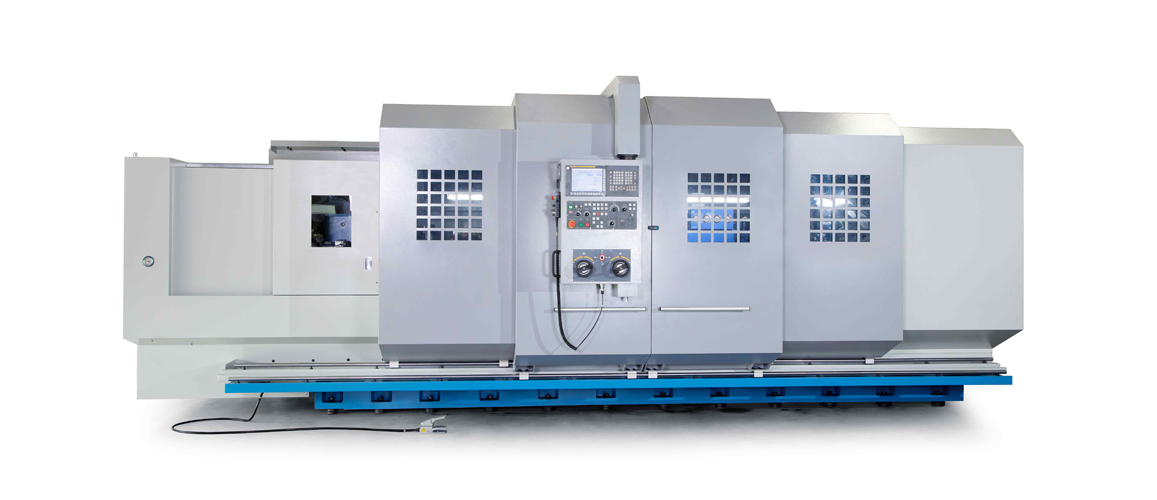

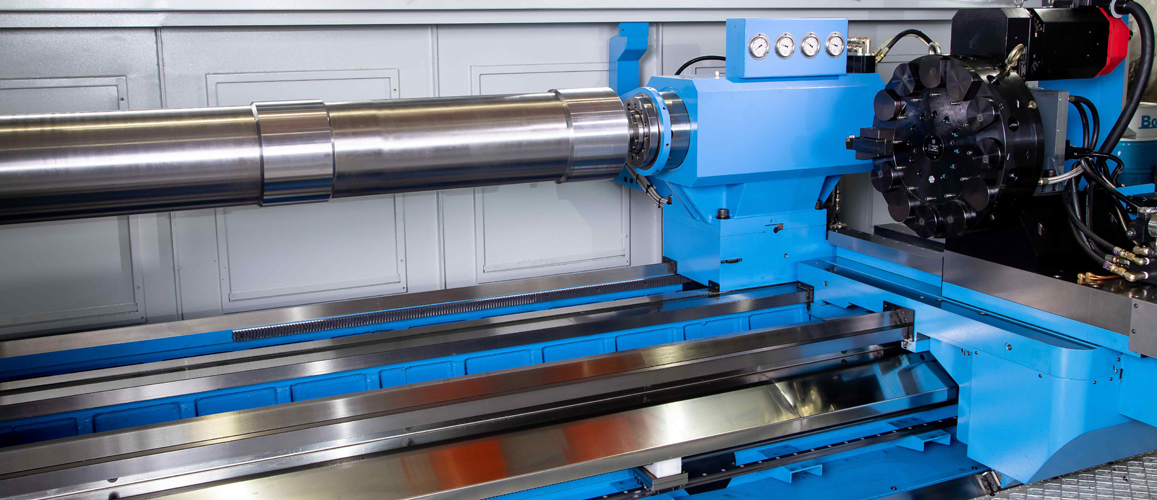

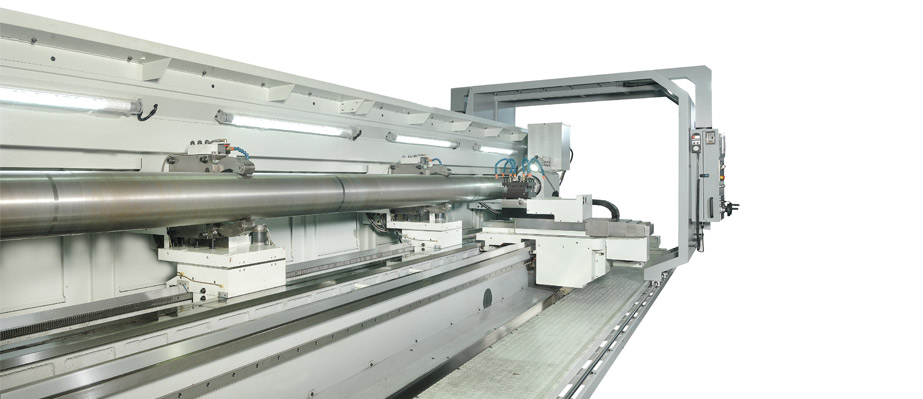

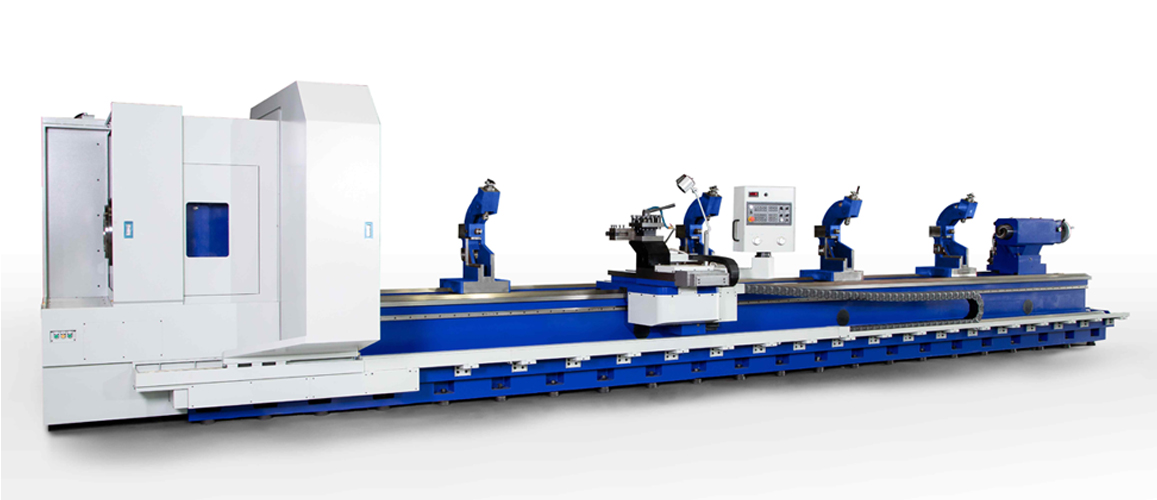

  • Photos
MODEL DY-1000C DY-1100C
Machining capability Distance between centers (mm) 2000/3000/4000/5000/6000/7000/8000/9000/10000/11000/~30000
Swing over bed 1000mm 1100mm
Swing over carriage 660mm 760mm
Bed Width 1040mm
Main spindle Spindle nose D1-11, 130mm, L 40-130, M 130-400, H 400-1200rpm
A2-11, 165mm, L 20-110, M 110-320, H 320-660rpm
A2-15, 230mm, L 20-110, M 110-320, H 320-660rpm
A2-20, 310mm, L 20-100, M 100-200, H 200-400rpm
Spindle bore
Spindle speed (rpm)
Travel Cross travel (X axis) 520mm 550mm
Longitudinal travel (Z axis) Same as distance between centers
Feeds X axis rapid traverse 5M/min
Z axis rapid traverse 5M/min
Cutting feed rate 0.001-500mm/rev (0.0004”-20”/rev)
Motors Main motor Fanuc or Siemens spindle motor 22kw
Inverter ---
X axis servo motor Fanuc or Siemens servo motor 2.49kw/11.9Nm
Z axis servo motor Fanuc or Siemens servo motor 8.31kw/39.7Nm
Oil pump 80W
Coolant pump 450W, 6~10bar
Hydraulic tank pump (optional) 3hp (2.2kw)
Tank capacity Hydraulic tank (optional) 20L
Lubrication pump 8L
Ball screw X axis diameter 40mm, pitch 10
Z axis diameter 1000~6000: 63mm / 7000~8000: 80mm / 9000~: gear rack
Tailstock Quill diameter 115mm (sta.) / 160mm (opt.) / 250mm (opt.)
Quill travel 270mm
Quill taper MT6
Length (mm) 5280 / 6280 / 7280 / 8280 / 9280 / 10280 / 11280 /12280 / 13280 / 14280 ~ mm
Width (mm) 3140 mm
Height (mm) 2530 mm
N.W. (kg) 12500 / 14900 / 17300 / 19800 / 22400 / 24800 / 27200 / 29600 / 31900 / 34300 ~

Weight capacity Chuck only Chuck + Tailstock Chuck + 1 Steady rest + Tailstock Chuck + 2 Steady rest + Tailstock
Spindle bore 130mm 1000kg 4500kg 6500kg 7500kg
Spindle bore 160mm 1500kg 5000kg 7000kg 8000kg
Spindle bore 230mm 1500kg 5500kg 7500kg 8500kg
* Above specifications are subject to change without notice. Special requirement please connect with us.
